Storm-3 UAV System

Storm-3 UAV System
Price:
USD
$3,000,000.00
$3,200,000.00
    Please select the information you wantX
Quantity:
-
+
(100 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please take couple of minutes to read our purchase guide so you know how to buy cars online at AutoFromChina
  • Description
  • Reviews
1. UAV Platform Introduction

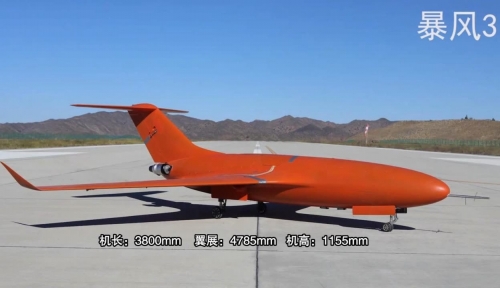

The Storm-3 UAV features a medium aspect ratio wing, T-tail configuration, and three-engine aerodynamic layout. It is designed as a medium-to-large platform UAV suitable for subsonic flight at medium and low airspeeds. The aircraft employs a blended wing-body design with an elliptical fuselage and a high-aspect-ratio trapezoidal wing, providing ample internal space for mission payloads. This dual-use (military and civilian) platform can be applied in various scenarios including mission payload flights, maritime surveillance, electronic pod deployment (complex electromagnetic environment construction or airborne communication relay), artificial precipitation enhancement, and cargo logistics.
2. Aircraft Platform Specifications

Storm-3 Key Parameters

Parameter Value
Wingspan 8135mm
Fuselage Length 6477mm
Fuselage Height 1530mm
Takeoff Weight 800kg
Payload Capacity 150kg
Endurance 4h
Fuel Capacity 400L
Control Range 100km
Flight Speed 540km/h
Service Ceiling 8000m
High-Altitude Performance Takeoff/Landing at 2000m altitude
Wind Resistance Takeoff/Landing: 12m/s, Cruise: 30m/s
Operating Environment -20℃ to +65℃, Light rain resistant
Propulsion System Three 80kgf turbojet engines / Jet fuel
Control Mode Programmed control / Command
Navigation System Fiber optic navigation + Satellite navigation
Takeoff/Landing Method Wheeled taxiing
Autonomy Level Fully autonomous takeoff/landing assistance
Safety Measures Triple-redundant propulsion system
3. Auxiliary Equipment

3.1 Ground Equipment Specifications

Item System Composition
Portable Ground Station 1. Single link (L/U) 100km, integrated data/video, ground and airborne.
2. Three-screen ruggedized computer.
3. Custom software development (requires evaluation).
4. Professional power supply equipment.
Shelter Ground Station 1. Shelter and internal equipment: 6000×2438×2200mm; includes industrial console, aviation seats, cabinets, air conditioning, antenna folding/retracting mechanism, DVR, generator, cables, UPS, etc.
2. Directional antenna: with servo tracking mechanism and lifting platform.
3. Industrial computers, simulation computers, differential station servers: Windows OS.
4. Ground control software: custom-developed software.
5. Ground station configuration: 1 station controls 3 aircraft.
Data Link Equipment 1. Single link (L/U) 300km, 4M bandwidth.
2. Includes airborne and ground equipment.
Satellite Communication Equipment 1. Airborne equipment: Max uplink rate ≥6Mbps; pointing accuracy ≤0.2° (R.M.S); satellite acquisition: automatic acquisition and networking; initial acquisition time ≤2min, signal recovery time ≤3s.
2. Ground equipment: Antenna, modem, etc.
3. Includes airborne and ground equipment.
Ground Support Equipment 1. Packaging cases, installation/maintenance tools, power generation, charging/discharging equipment.
2. Assembly jigs, refueling equipment, comprehensive testing equipment, test bench, lifting equipment, trailer.
3. Configuration: 1 set per 5 aircraft.

3.2 Optional Accessories Specifications

Item System Composition
Navigation Anti-Jamming Equipment 1. 4-channel BDS_B1, GPS_L1 signal reception.
2. Anti-jamming bandwidth: 20MHz.
3. Anti-burnout capability: ≥10W.
4. Channels: 4 B1/L1 channels.
5. Anti-jamming types: Resists broadband, swept frequency, pulse and other suppression jamming in BDS_B1 and GPS_L1 bands.
6. Simultaneous anti-jamming: 1-3 interference sources from different directions.
Medium EO/IR Pod 1. Positioning accuracy: ≤5m (CEP) for targets at 1km.
2. Camera resolution ≥1920×1080.
3. Detection range ≥3km.
LiDAR (Long Range) 1. Range: 1500m, mapping grade, includes processing software.
Cargo Transport Pod 1. Standard cargo pod.
Integrated Ground Support Vehicle 1. Customizable.
4. System Quotation
Category System Composition Price
UAV Platform 1. Airframe structure To be quoted
2. Flight control system To be quoted
3. Avionics system To be quoted
4. Propulsion system To be quoted
5. Landing gear system To be quoted
Ground Equipment 1. Shelter ground station To be quoted
2. Portable ground station (with 100km data link) To be quoted
3. 300km data link equipment (airborne + ground) To be quoted
4. Satellite communication equipment (airborne + ground) To be quoted
5. Cargo transport pod To be quoted
6. Ground support equipment To be quoted
Optional Accessories 1. Navigation anti-jamming equipment To be quoted
2. Medium EO/IR pod To be quoted
3. LiDAR (long range) To be quoted
